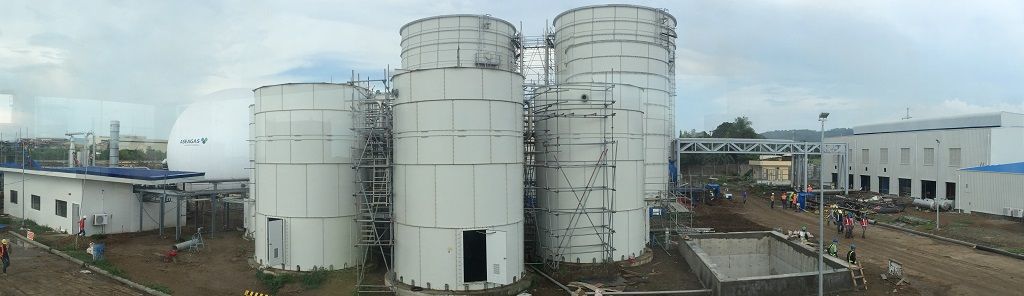

Bio-Digestor & Co-generation Facility @ HYDROGEN (Batangas Bay, Luzon, Philippines)

紅色線_工作區域 1.svg


Au Analytical Modules are custom functional products.
The following are examples of analytical modules that can be produced from existing components we have available. Many other variations are possible, we are happy to customize a module to fit your specific needs and we are always adding capability which makes possible different configurations with added and/or reduced features and functions.

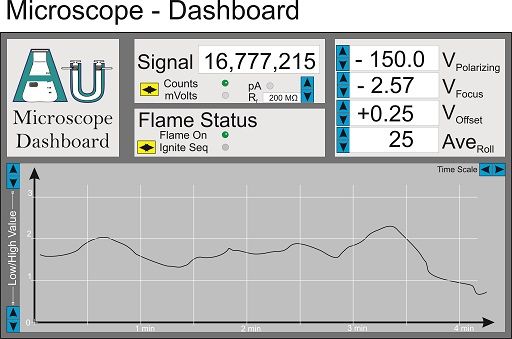

Microscope
  • Dashboard for Fireworks Modules
  • Provides support for OEM development
  • Available in source format for ease of integration
  • Provides full functional support (configuration of HW)

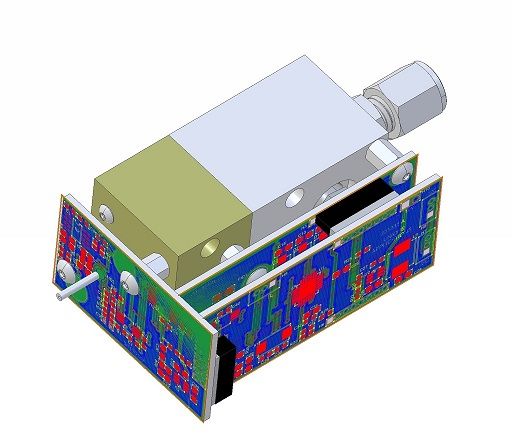

Fireworks II -Smart FID Sensor
  • Full Fireworks Functionality
  • Supports Stand Alone Operation
  • Data Streaming – No need for polling
  • Onboard Calibration for Conc. reporting

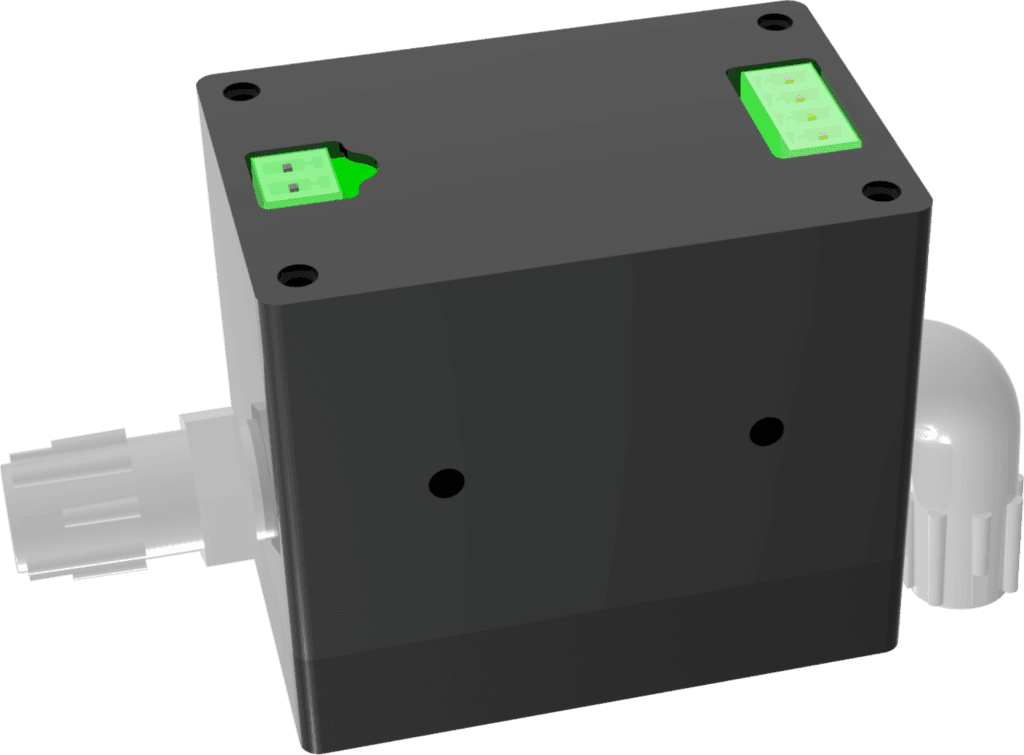

Lighthouse – PID Smart Module
  • Environmental Controlled PID Sensor Module
  • Temperature & Humidity Signal Correction
  • Power Efficient
  • Sample Filtering
  • Factory Calibrated – Ready to Use

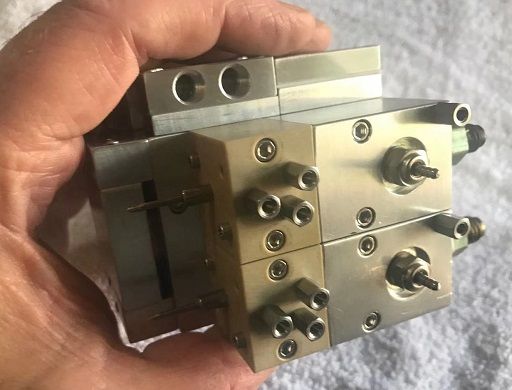

Truculence AM II – OEM
  • Total Non-Methane HC module for OEM
  • Operation from 100C to 190C
  • Dual FID for real time TNMHC readings
  • Integrated sample filter and all flow control components
  • Requires external temp controllers (2 ea.)
  • Support gasses required are pressure regulated Air (80 – 150 cc/min), H2 (15 – 45 cc/min) and sample pressure set point (no flow)
  • Requires pressurized sample – ~20 psig standard (custom values available)
